UWB Real-Time Location System
Precision indoor positioning using Ultra-Wideband technology. Sub-meter accuracy for asset tracking, personnel safety, and workflow automation in healthcare, manufacturing, and enterprise environments.
How It Works
TDoA Mode
Time Difference of Arrival - synchronized anchor timestamps
- •Tag broadcasts UWB pulse to multiple synchronized anchors
- •IEEE-1588 PTP provides nanosecond timing via PoE
- •Supports large numbers of simultaneous moving tags
- •Deterministic behavior under high movement
TWR Mode
Two-Way Ranging - round-trip signal timing
- •Anchor sends request, tag responds, distance calculated
- •No PTP required - anchors operate independently
- •Wi-Fi or non-PTP Ethernet backhaul supported
- •~10 active tags per 10m × 10m cell
20-50cm
Optimized Accuracy
100K+
Tags Supported
<1s
Update Latency
12mo
Battery Life

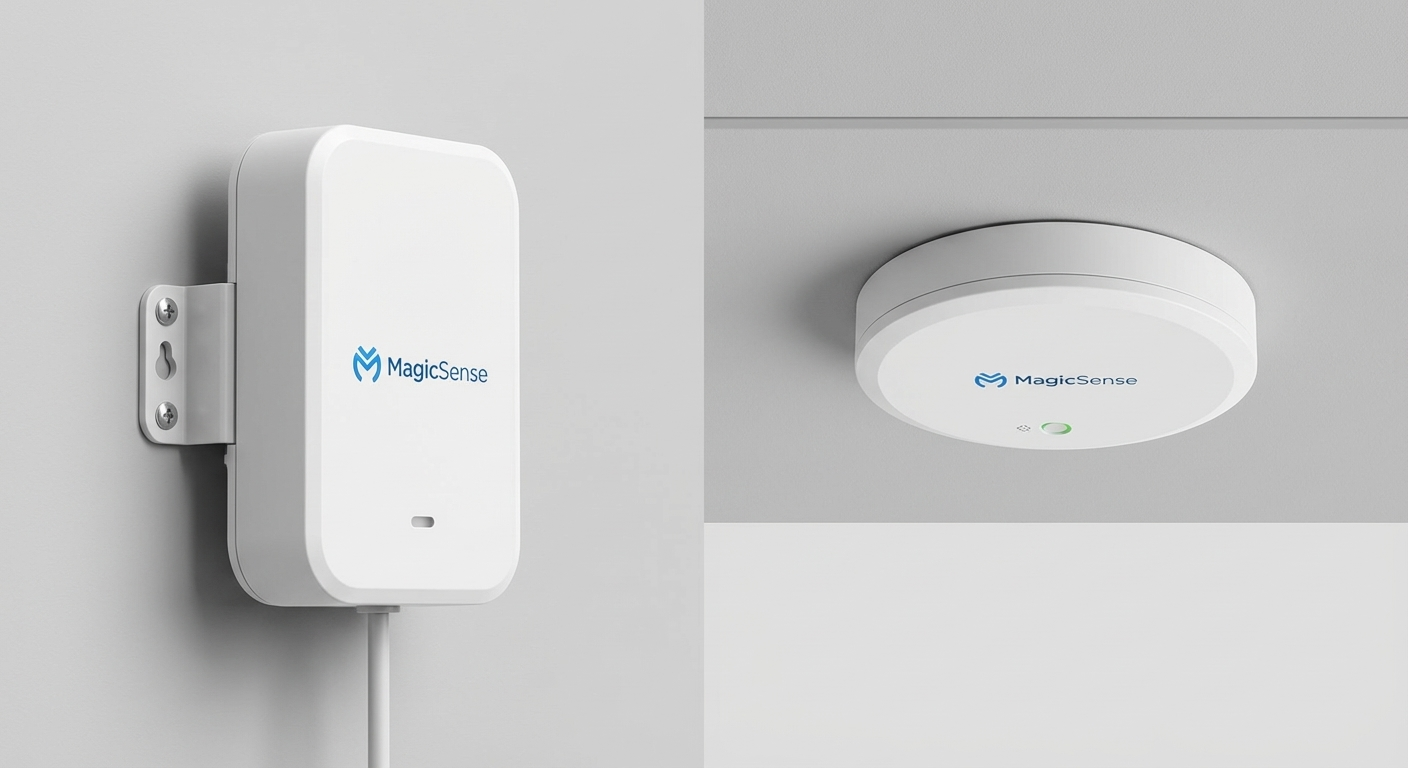

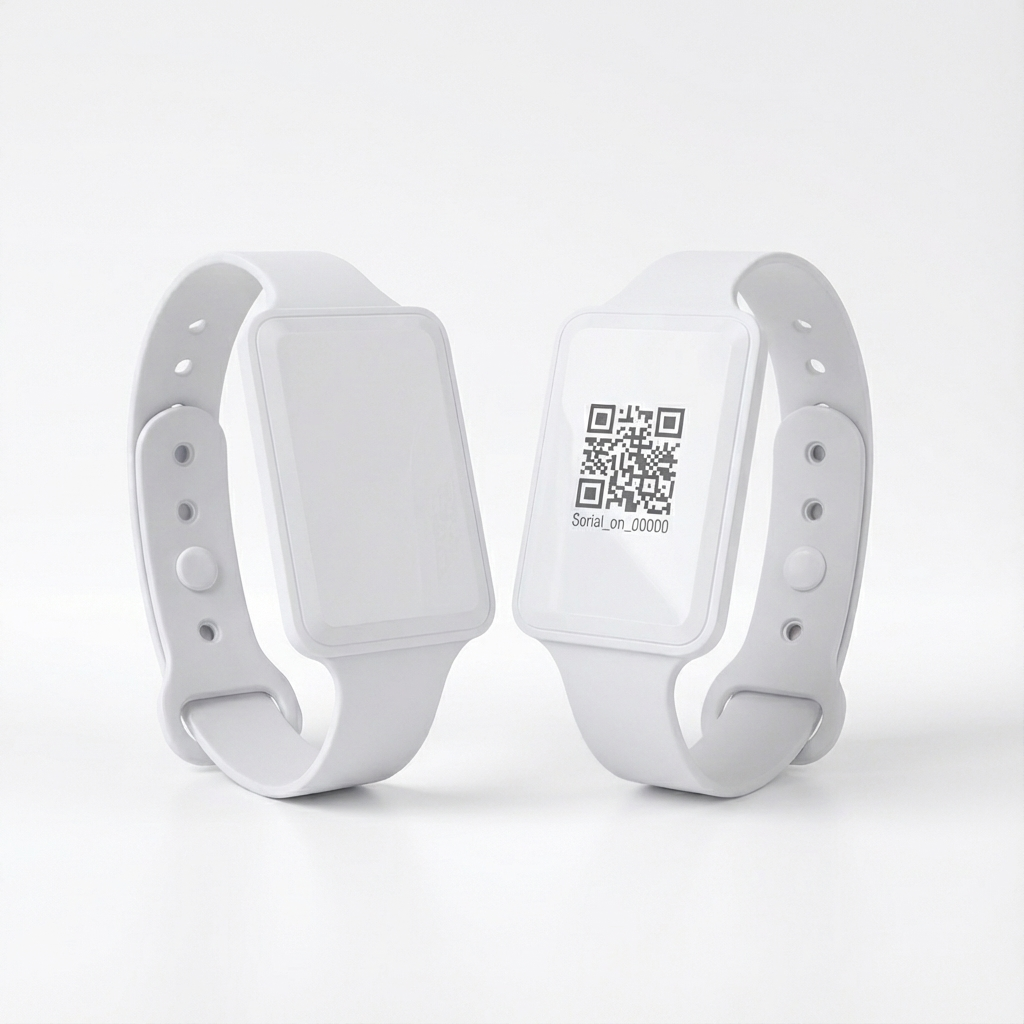

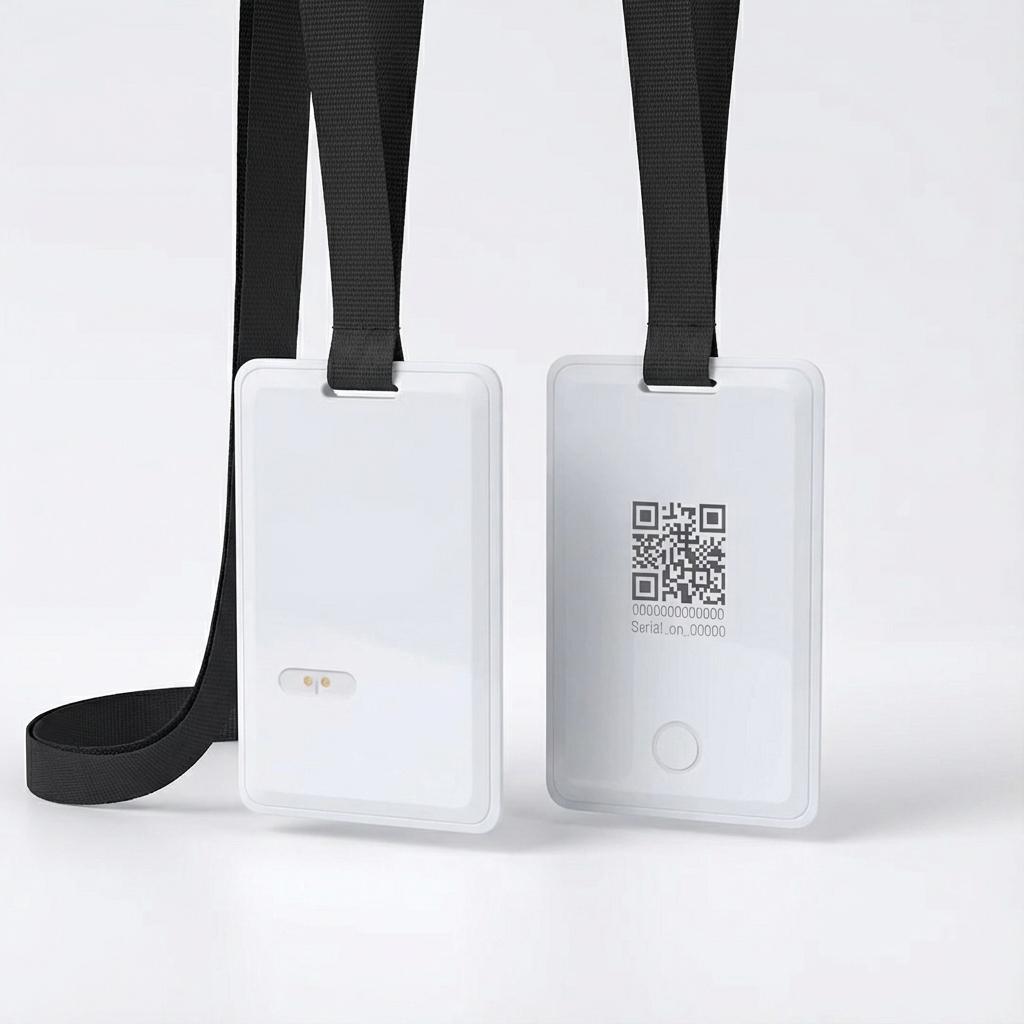

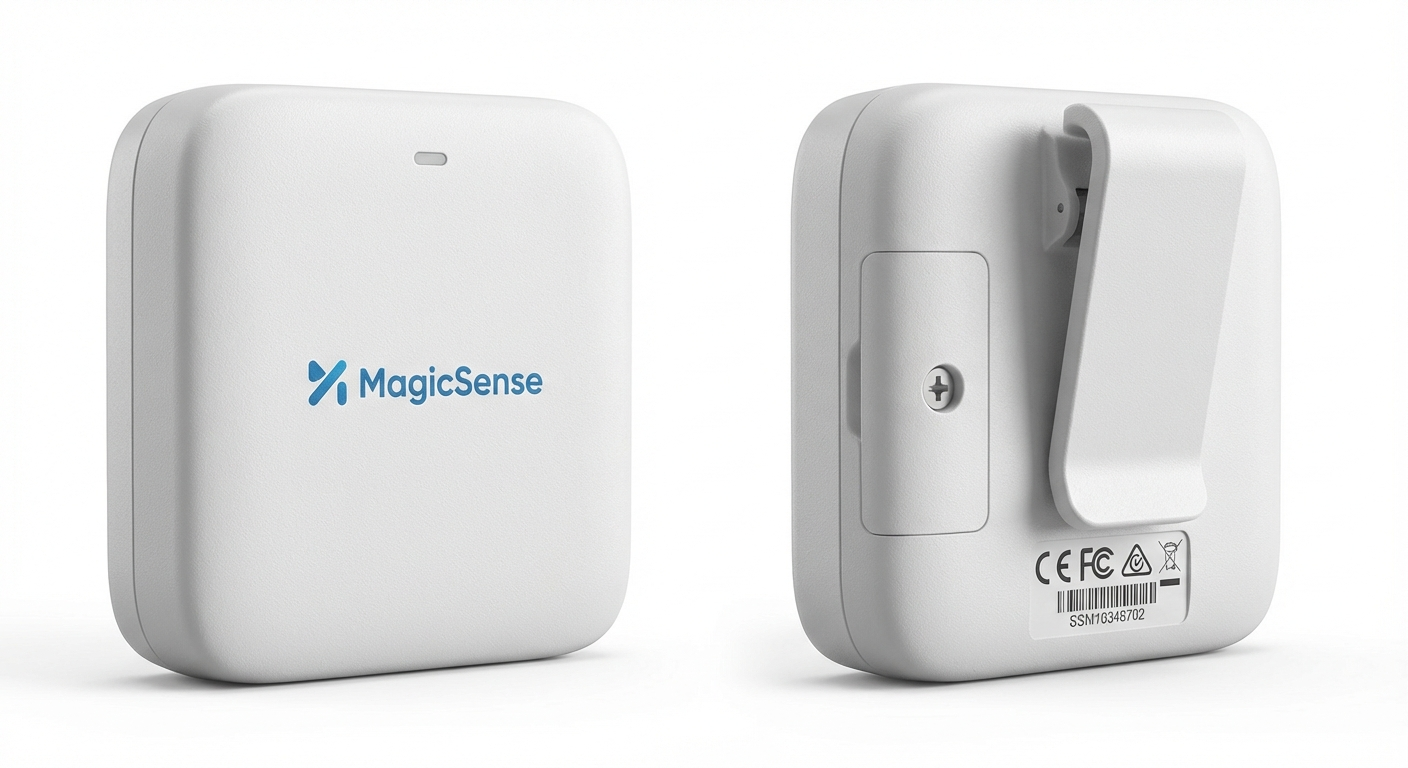

System Components
Select a component to view detailed specifications
Deployment Architecture
🔌 PoE/Ethernet Deployment
- •PoE provides power + timing + data
- •IEEE-1588 PTP distributed over Ethernet
- •Fixed mounting with wired stability
- •Supports continuous motion and higher tag density
📶 Wi-Fi Deployment
- •Anchors use Wi-Fi backhaul on dedicated SSID
- •1 Mbps uplink bandwidth per anchor
- •Low packet loss and stable RF coverage required
- •Powered via AC mains or PoE-to-WiFi adapters
